Car Electrical Connectors

Modern vehicles are marvels of engineering, relying on an intricate web of sensors, actuators, and electronic control units to function efficiently. At the heart of this complex network lie car electrical connectors, the unsung heroes that ensure reliable power and signal transmission across the entire automotive system. Without these critical components, everything from your engine’s ignition system to the advanced infotainment display would fail, leading to catastrophic vehicle downtime. Understanding how these connectors work, how to identify them, and how to maintain them is essential for anyone interested in DIY automotive repair or professional diagnostics.

The Anatomy of Car Electrical Connectors

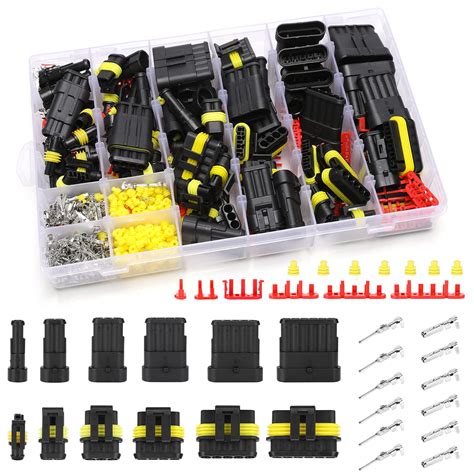

A car electrical connector is more than just a piece of plastic and metal. It is a precision-engineered device designed to maintain a stable electrical path while being subjected to extreme heat, vibration, moisture, and chemical exposure. Most automotive connectors consist of three primary components:

• The Housing: Usually made from high-temperature resistant nylon or PBT (polybutylene terephthalate), the housing protects the terminals from environmental damage and ensures proper alignment.

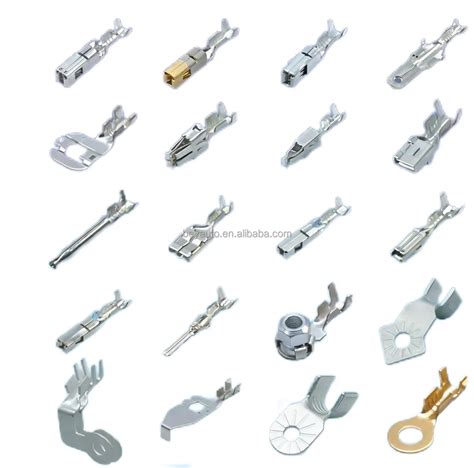

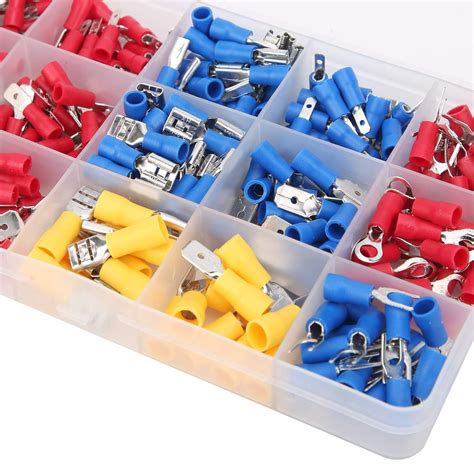

• The Terminals: These are the metallic components—usually brass, copper, or nickel-plated—that physically touch to complete the circuit. They are categorized into male (pins) and female (sockets/receptacles).

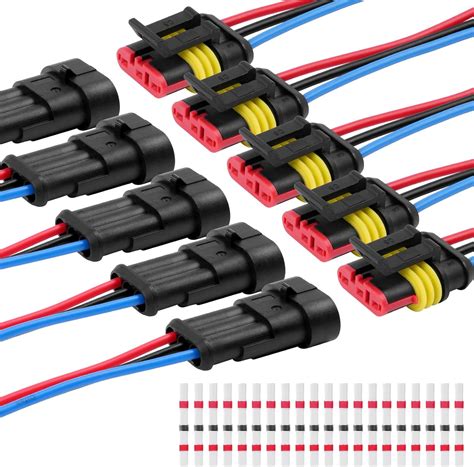

• Seals and Gaskets: Crucial for weather-pack or sealed connectors, these rubber components prevent moisture and dirt from corroding the electrical contacts.

Because vehicles operate in harsh environments, manufacturers utilize different types of connectors based on their location. For instance, an under-hood sensor will use a sealed connector with silicone grommets, whereas a dashboard connector might be unsealed to save cost and weight.

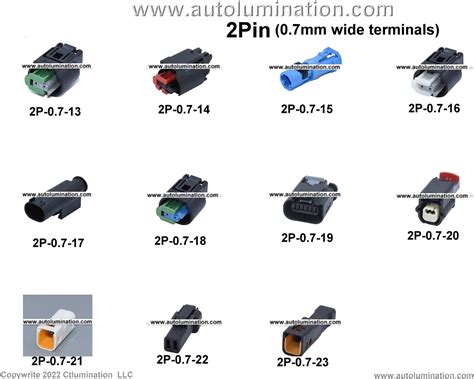

Types of Automotive Connectors

Selecting the right connector is vital for specific applications. Automotive engineers classify these parts based on their structural design and intended usage. Below is a comparison of the most common types found in modern vehicles.

How to Troubleshoot Connection Issues

Electrical gremlins are often the most frustrating issues to diagnose in a vehicle. When a system fails, the problem is frequently not the component itself, but a compromised car electrical connector. Common failure modes include oxidation on the pins, loose terminals (causing intermittent signals), or melted housings due to excessive current draw.

If you suspect a connector is failing, follow these steps to perform a diagnostic check:

• Visual Inspection: Look for signs of "green crust" (corrosion), burnt plastic, or exposed wiring.
• Terminal Tension Test: With the connector unplugged, use a pick tool to gently check if the female terminal pins are loose or stretched.
• Voltage Drop Testing: Use a multimeter to measure the voltage on both sides of the connector while the circuit is loaded. If there is a significant difference, the connector has high resistance and needs cleaning or replacement.

⚠️ Note: Always disconnect the vehicle's battery before attempting to clean or repair electrical connectors to prevent accidental short circuits or damage to sensitive ECU components.

Best Practices for Maintenance and Repair

Proper maintenance of your vehicle’s electrical system can prevent costly breakdowns. When repairing or replacing car electrical connectors, it is imperative to use the correct tools. Never use standard needle-nose pliers to crimp terminals; always use a dedicated ratcheting crimp tool designed for the specific terminal size to ensure a gas-tight seal.

Furthermore, if you find corrosion, do not simply wipe it off. Use a dedicated electrical contact cleaner that leaves no residue. If the environment is high-moisture, applying a small amount of dielectric grease can prevent future corrosion by sealing out oxygen and water, though it should never be applied directly to the mating surfaces of low-current signal pins, as it can sometimes act as an insulator.

When working with sensitive sensor wiring, pay close attention to the wire gauge. Using a wire that is too thin will increase resistance and cause heating, potentially melting the connector housing over time. Always match the replacement wire gauge to the original OEM specification.

Choosing Quality Components

Not all connectors are created equal. When sourcing replacements, avoid cheap, unbranded components found on discount marketplaces. Automotive-grade connectors are subjected to stringent ISO and SAE testing standards. High-quality connectors ensure that the "lock" or "latch" mechanism remains secure over years of road vibration. A loose connector that disconnects at highway speeds can cause engine misfires, transmission errors, or even sudden stalling. Always prioritize OEM or reputable aftermarket brands that specialize in automotive electrical systems to ensure your vehicle remains safe and roadworthy for the long haul.

Maintaining the integrity of the electrical system is a critical aspect of vehicle longevity. By recognizing the importance of car electrical connectors, you empower yourself to diagnose issues faster and perform more reliable repairs. Whether you are dealing with minor interior light flickers or complex sensor failures, checking the connection points should always be your first line of action. Investing in quality materials, the correct crimping tools, and a systematic approach to inspection will save you significant time and money throughout the life of your vehicle. Keeping these connections clean and secure ensures that your vehicle’s complex electronics continue to operate in harmony, providing you with a safer and more dependable driving experience.
