When the sweltering heat of summer arrives, there is nothing quite as frustrating as stepping into a car that feels like an oven. If your air conditioning system is blowing warm air instead of refreshing, icy blasts, you might be tempted to head straight to a professional mechanic. However, many common AC issues can be diagnosed at home using car AC gauges. Understanding how to read these pressure readings is the key to maintaining your vehicle's cooling system, saving you money on labor costs, and ensuring you stay comfortable on the road regardless of the temperature outside.
What Are Car AC Gauges and Why Do You Need Them?

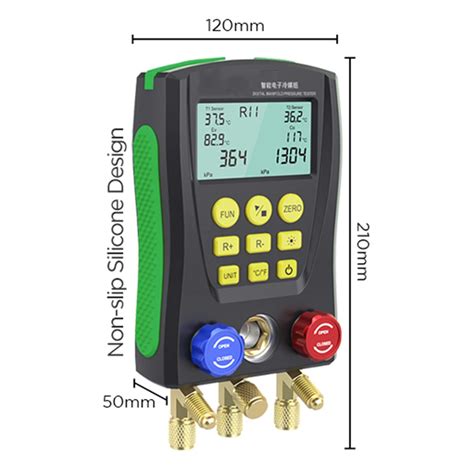

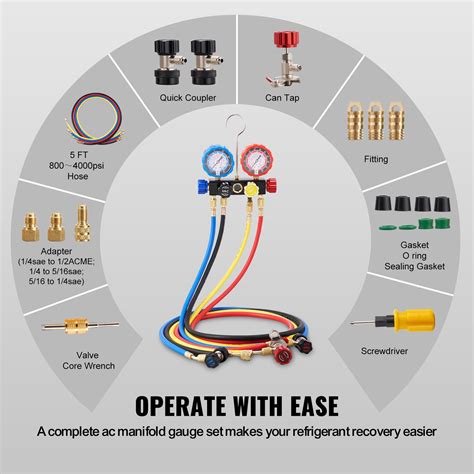

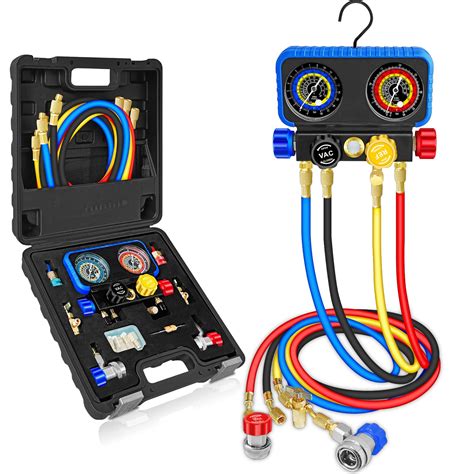

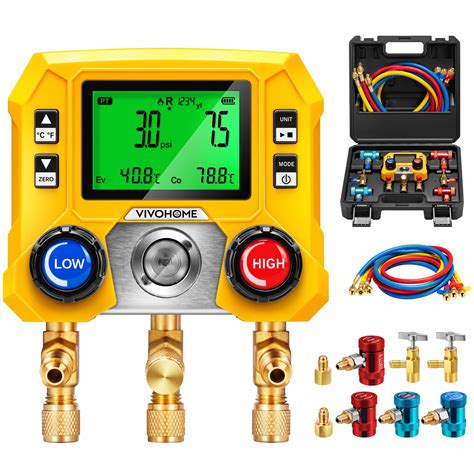

Car AC gauges, often referred to as manifold gauge sets, are essential diagnostic tools used to measure the pressure levels within your vehicle’s air conditioning system. A typical set consists of two main gauges: the blue gauge (low side) and the red gauge (high side), connected to a manifold block with hoses. By reading the pressure on both the low and high sides, you can identify whether your system is low on refrigerant, has a blockage, or is suffering from a failing compressor.
Using these tools is the first step in any professional-grade AC repair. Without them, you are essentially guessing, which can lead to overcharging the system—a mistake that can damage your compressor and lead to costly repairs. Investing in a quality set of gauges empowers you to monitor the health of your cooling system effectively.
Understanding the Components of the System
Before attaching your car AC gauges, it is helpful to know what you are looking at. The AC system relies on the circulation of refrigerant, which transitions between liquid and gas states to absorb heat. The gauges help you visualize this cycle:
- Low-Side Gauge (Blue): Monitors the suction side of the compressor. Low readings here often indicate low refrigerant or a restriction in the expansion valve.
- High-Side Gauge (Red): Monitors the discharge side. High readings can indicate a blockage in the condenser or issues with the cooling fan.
- Hoses: Typically color-coded to prevent confusion (blue for low, red for high, yellow for the refrigerant supply/vacuum pump).
Standard Pressure Ranges for Reference
Pressure readings can vary significantly depending on the ambient air temperature. It is critical to compare your readings against the specific chart provided by your vehicle's manufacturer. However, the table below provides a general baseline for a properly functioning system at an ambient temperature of 75°F to 85°F.
| System Status | Low-Side PSI | High-Side PSI |
|---|---|---|
| Normal Operation | 25 - 40 | 150 - 250 |
| Low Refrigerant | Below 25 | Below 150 |
| Overcharged | Above 45 | Above 300 |
| Compressor Issue | High/Erratic | Low/Erratic |
⚠️ Note: Always check your vehicle’s service manual for the exact pressure specifications, as different car models and refrigerant types (like R-134a or R-1234yf) have unique requirements.
Step-by-Step Guide to Connecting the Gauges
Safety is paramount when working with pressurized systems. Always wear protective eyewear and gloves, as refrigerant can cause severe frostbite upon contact with skin. Here is how to safely connect your car AC gauges:

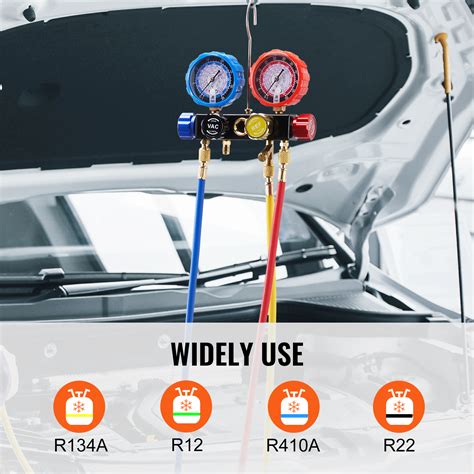

- Locate the Ports: Find the service ports on your car. The low-side port is usually on a thicker aluminum tube, and the high-side port is on a thinner tube.
- Prepare the Hoses: Ensure all valves on the manifold are closed before connecting.
- Connect the Hoses: Snap the blue coupler onto the low-side port and the red coupler onto the high-side port. You should hear a slight click indicating they are locked.
- Check the Readings: Start your engine, turn the AC to the coldest setting, and run the fan on high. Observe the needles on the gauges while the system stabilizes.
💡 Note: Ensure your engine is running and the AC is set to "Max Cool" with the windows down before taking readings, otherwise the data will be inaccurate.
Interpreting Common Gauge Patterns
Once the gauges are connected, the patterns you see will tell a story about what is happening inside the sealed loop of your air conditioner. If the needles are fluctuating rapidly, this often indicates moisture in the system, which can cause internal damage. If both needles are reading very low, you are likely looking at a leak that has depleted your refrigerant supply. Conversely, if the high side is abnormally high while the low side remains normal, you may have an airflow problem, such as a clogged condenser radiator covered in debris or a malfunctioning cooling fan that isn't pulling enough air through the front of the vehicle.
Maintaining Your Equipment

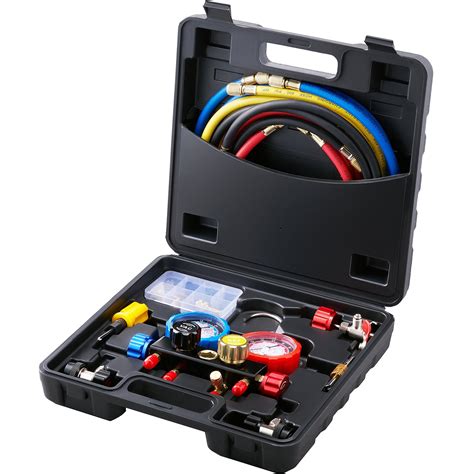

Like any precise tool, car AC gauges require maintenance to remain accurate. Always wipe down the couplers after use to remove any trace of refrigerant or oil. Store the gauges in a dry, dust-free case to prevent moisture from entering the internal mechanisms. If you notice that your gauges are not returning to the zero position when disconnected, they may need recalibration or replacement, as inaccurate readings are worse than having no gauges at all.
By taking the time to learn how to utilize these diagnostic instruments, you gain a significant advantage in keeping your vehicle’s environment pleasant. Regularly monitoring your AC pressure not only prevents sudden breakdowns during the heat of summer but also extends the lifespan of your expensive compressor. Remember that while adding refrigerant can solve simple low-pressure issues, persistent pressure drops are a sign of a leak that needs professional attention. With a steady hand and a clear understanding of your vehicle’s specific requirements, you can effectively manage your car’s climate control, ensuring every drive remains cool and comfortable for years to come.
