Understanding how components behave in an electrical circuit is fundamental for anyone venturing into electronics, whether as a hobbyist or an engineering student. Among these components, the capacitor holds a special place due to its ability to store and release electrical energy. While connecting capacitors in parallel is common for increasing total capacitance, the configuration of a capacitor in series serves distinct and critical functions in circuit design. When you arrange capacitors in this specific setup, you are fundamentally changing how the circuit handles voltage distribution and total charge capacity. Mastering this concept is essential for applications ranging from voltage balancing to precision timing circuits.
What Happens When You Connect a Capacitor in Series?
When you place more than one capacitor in series, you are creating a single path for the current to flow through each component sequentially. Unlike parallel circuits where each capacitor shares the same voltage source directly, series capacitors share the total applied voltage among themselves. Because the current has only one path to take, the charge stored on each capacitor plate must be identical.
This configuration leads to some interesting physical behaviors:
- Total Capacitance Decreases: This is the most counter-intuitive aspect for beginners. Connecting a capacitor in series results in a total capacitance that is actually lower than the value of the smallest capacitor in the chain.
- Voltage Distribution: The total voltage applied across the network is split between the capacitors. The capacitor with the smallest capacitance will experience the highest voltage drop across it.
- Increased Voltage Rating: By spreading the voltage across multiple components, you effectively increase the total voltage rating of the entire series string, which can be useful when you do not have a capacitor with a high enough voltage rating for your specific application.
The Mathematical Framework

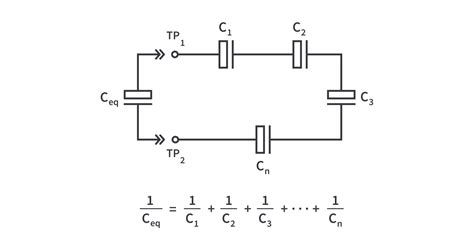

To calculate the equivalent capacitance of capacitors in a series configuration, you cannot simply add their values. Instead, you use a formula that resembles how resistors behave when connected in parallel. For two or more capacitors connected in series, the formula for the equivalent capacitance (Ceq) is:
1 / Ceq = (1 / C1) + (1 / C2) + (1 / C3) + ... + (1 / Cn)
If you are working with only two capacitors in series, you can simplify the math by using the "product over sum" method:
Ceq = (C1 * C2) / (C1 + C2)
Understanding these formulas is critical because it highlights why adding more capacitors in series makes the total capacitance smaller. As you add more terms to the reciprocal sum, the equivalent value shrinks.
| Number of Capacitors | Capacitance Relationship | Resulting Behavior |
|---|---|---|
| Two (Equal Value) | C / 2 | Total capacitance is halved |
| Three (Equal Value) | C / 3 | Total capacitance is reduced by two-thirds |
| Two (Unequal Value) | (C1 * C2) / (C1 + C2) | Always lower than the smallest capacitor |
⚠️ Note: When calculating, always ensure that your units are consistent (e.g., all in microfarads or all in farads) to avoid significant errors in your final circuit design.
Why Use a Capacitor in Series?
Given that placing a capacitor in series reduces total capacitance, you might wonder why an engineer would choose this configuration. It is rarely done just to decrease capacitance, as you could simply choose a smaller capacitor. Instead, this setup is utilized for specific technical advantages:
- Voltage Rating Enhancement: If a circuit requires a 100V threshold but you only have capacitors rated for 50V, placing two identical 50V capacitors in series will allow the network to handle 100V. Each capacitor will see only half the total voltage.
- Precision Tuning: In sensitive RF (Radio Frequency) circuits, you might need a very specific capacitance value that is not available as a standard off-the-shelf component. By combining two standard values in series, you can "trim" the total capacitance to hit an exact, non-standard target.
- DC Blocking: Series capacitors are inherently good at blocking DC current while allowing AC signals to pass. This is a primary function in coupling applications within audio amplifiers.
⚠️ Note: When using electrolytic capacitors in series for voltage division, always place a high-value resistor (bleeder resistor) in parallel with each capacitor. This ensures that the voltage divides equally based on the resistance rather than the leakage current of the capacitors, which can vary significantly between components.
Key Considerations for Implementation
When working with these circuits, there are a few practical rules to follow to ensure your project remains stable and safe. Firstly, always verify the leakage current of your components. If you have two capacitors with different leakage characteristics, the voltage will not divide evenly across them. The capacitor with lower leakage will eventually be subjected to a higher voltage, potentially exceeding its rating and causing it to fail.
Secondly, consider the physical space. While a single large capacitor is often better, sometimes the form factor of a smaller capacitor is required to fit into a tight enclosure. Using a capacitor in series can sometimes help in fitting components into unusual PCB layouts where height is limited, but you are wider on the board surface area.
Finally, always remember that the charge stored in a series configuration is the same for every capacitor in the path. If you are designing for energy storage, the total energy stored is still limited by the smallest capacitor in the string. Do not expect to increase the total energy capacity by putting capacitors in series; that is what parallel configurations are for.
By keeping these core principles in mind, you can effectively utilize series capacitor configurations to solve complex design challenges, whether you are trying to exceed voltage limitations, achieve a precise value, or manage AC coupling. Always prioritize the voltage ratings of your components and remember the reciprocal nature of the math involved. As you continue to experiment with these building blocks, you will find that these configurations provide a flexible way to manipulate electrical energy, allowing for more robust and capable circuit designs in your electronics journey.
