The Brugada pattern represents one of the most intriguing and clinically significant findings in the field of electrocardiography. Often identified during a routine check-up, this specific electrical signature on an ECG can be a source of significant anxiety for patients and medical professionals alike. Understanding the nuances of this condition is vital because, while it is often asymptomatic, it carries the potential for life-threatening arrhythmias. Distinguishing between the mere presence of an ECG manifestation and the formal diagnosis of Brugada Syndrome is the first step toward effective patient management and risk stratification.
What is the Brugada Pattern?
The Brugada pattern refers to a specific appearance on an electrocardiogram (ECG) characterized by ST-segment elevation in the right precordial leads (V1 and V2). These leads are crucial because they directly visualize the right ventricular outflow tract, where the genetic or functional electrical abnormalities associated with this condition typically originate. It is important to clarify that seeing this pattern does not automatically equate to a diagnosis of Brugada Syndrome; rather, it indicates an underlying ionic channel dysfunction that may or may not lead to clinical symptoms.
The condition is primarily linked to mutations in the SCN5A gene, which encodes for the cardiac sodium channel. When these channels do not function correctly, it leads to a loss of the action potential dome in the epicardial cells of the right ventricle, creating a transmural voltage gradient that results in the classic ECG findings. This genetic predisposition means that family screening is often recommended for anyone presenting with these findings.
Distinguishing Patterns and Risk Factors
Clinicians typically classify the Brugada pattern into three distinct types based on the morphology of the ST-segment elevation. Recognizing these types is essential for the diagnostic process:

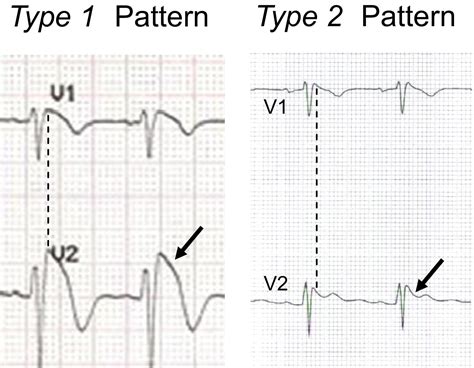

- Type 1 (Coved Pattern): This is the only diagnostic form of the pattern. It is characterized by a high-takeoff ST-segment elevation ≥ 2 mm followed by a negative T-wave in at least one right precordial lead (V1-V2).
- Type 2 (Saddleback Pattern): Shows a high-takeoff ST elevation ≥ 2 mm, followed by a trough that drops below 1 mm, and then a positive or biphasic T-wave.
- Type 3: Similar to Type 2, but the ST-segment elevation is < 1 mm, making it less specific and often requiring further clinical investigation.
| Pattern Type | ST-Segment Morphology | Clinical Significance |
|---|---|---|
| Type 1 | Coved (≥2mm elevation) | Diagnostic for Brugada Syndrome |
| Type 2 | Saddleback | Suggestive; requires provocation testing |
| Type 3 | Saddleback/Coved (<1mm) | Non-diagnostic; requires close follow-up |
⚠️ Note: Only the Type 1 pattern is considered diagnostic for Brugada Syndrome, provided it is associated with clinical symptoms or triggered by specific medications.
Clinical Presentation and Triggers
Many individuals living with the Brugada pattern remain entirely asymptomatic throughout their lives. However, for those who do experience symptoms, they are usually the result of rapid heart rhythms (ventricular tachycardia or ventricular fibrillation). Common red flags include unexplained fainting (syncope), palpitations, or, in severe cases, sudden cardiac arrest. It is essential to recognize that triggers can exacerbate the underlying electrical instability.
External factors can “unmask” the pattern or provoke arrhythmias in vulnerable individuals. These triggers include:
- Fever: This is perhaps the most significant trigger. High body temperature can worsen sodium channel dysfunction, causing an asymptomatic pattern to evolve into a life-threatening rhythm.
- Medications: Several classes of drugs, including certain antiarrhythmics, tricyclic antidepressants, and even some anesthetics, can affect the ion channels and must be avoided by those with a known pattern.
- Electrolyte Imbalances: Hypokalemia or hyperkalemia can significantly alter the myocardial electrical stability.
- Heavy Alcohol or Meal Intake: Large, carbohydrate-rich meals or excessive alcohol consumption have been reported to trigger arrhythmias in some patient cohorts.
Diagnostic Approaches
When a physician detects a Brugada pattern, the diagnostic journey begins with a thorough evaluation. This process is designed to differentiate between a stable, benign finding and a condition requiring active intervention. The standard approach includes:
- Comprehensive Medical History: Identifying a family history of sudden unexplained death is critical.
- ECG Monitoring: Serial ECGs are often performed because the pattern can be transient—it may appear, disappear, and reappear over time.
- Provocation Testing: If Type 2 or Type 3 patterns are present, doctors may use specialized drugs (like Ajmaline or Flecainide) under strict monitoring to see if they can induce a Type 1 pattern, confirming the underlying susceptibility.
- Genetic Testing: While a genetic mutation is found in only about 20-30% of patients, it can be a valuable tool for screening family members.
💡 Note: Provocation testing must only be conducted in a hospital setting equipped with advanced life support, as these drugs may induce dangerous arrhythmias.
Management and Risk Stratification
The management of a patient with the Brugada pattern is highly individualized. Risk stratification is the cornerstone of treatment; not every patient requires an invasive procedure. For asymptomatic individuals, the strategy is often conservative. This involves avoiding the aforementioned triggers, such as keeping fevers under control with antipyretics and avoiding contraindicated medications.
For high-risk patients—defined as those who have experienced syncope or documented cardiac arrest—an Implantable Cardioverter Defibrillator (ICD) is the gold standard. The ICD acts as a safety net, capable of delivering a life-saving shock if the heart enters a dangerously fast rhythm. In specific, rare scenarios where an ICD is not feasible or appropriate, pharmacological options like quinidine may be utilized to help stabilize the cardiac electrical rhythm.
Living with the Condition
Adapting to a life with a Brugada diagnosis involves proactive health management. Education is the most powerful tool for patients. It is vital for those diagnosed to carry an updated list of safe and unsafe medications. Additionally, ensuring that primary care physicians and dentists are aware of the diagnosis is crucial, especially before any procedures that involve local anesthesia, as certain types of anesthesia can pose a risk.
Routine follow-ups with an electrophysiologist ensure that any changes in the heart’s rhythm or the patient’s condition are caught early. While the diagnosis may feel daunting, many individuals manage the condition effectively and lead full, active lives by adhering to simple lifestyle adjustments and medical guidance.
In summary, the Brugada pattern is a complex diagnostic entity that requires careful clinical interpretation. While its presence on an ECG is a significant finding, it does not always dictate an aggressive treatment path. By combining careful history taking, risk stratification, and patient education regarding triggers like fever and certain medications, physicians can effectively manage the risks associated with this condition. The key to successful long-term care remains consistent monitoring and a deep understanding of the patient’s individual clinical picture, ensuring that those at highest risk receive the necessary interventions while others are spared unnecessary procedures.
