For high-performance enthusiasts, the allure of forced induction is undeniable. When you decide to add a turbocharger or a supercharger to a naturally aspirated engine that relies on a carburetor, you encounter a unique engineering challenge: pressure. Unlike a standard setup that draws air in via vacuum, a boosted application forces air into the engine, and the carburetor must be able to handle this positive pressure without leaking, flooding, or leaning out. This is where the specialized blow through carburetor comes into play. By modifying the fuel delivery system to account for boost pressure, you can successfully run forced induction on a carbureted platform, achieving impressive power gains while maintaining the classic simplicity and tunability of a carburetor.
Understanding the Mechanics of a Blow Through Carburetor
At its core, a blow through carburetor is a specially prepared unit designed to function inside a pressurized environment. In a standard setup, the carburetor sits atop the intake manifold, operating under vacuum. When you introduce a turbocharger, you are essentially forcing pressurized air into the carburetor's air horn. If you were to use a standard carburetor in this configuration, the air pressure would overcome the fuel pressure, preventing fuel from flowing into the bowls, or worse, it would force fuel out of the vents and gaskets, creating a hazardous and non-functional scenario.

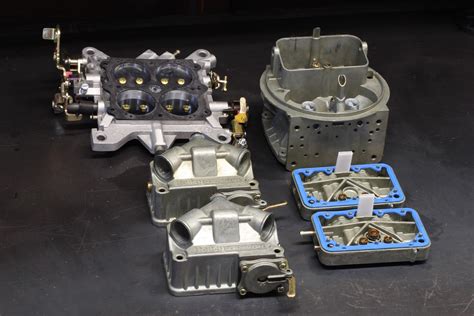

To overcome these obstacles, a blow through carburetor undergoes several critical modifications:
- Boost Referencing: The fuel bowls must be pressurized equally to the air horn pressure. This ensures that the pressure inside the carburetor is balanced, allowing the fuel to flow through the jets correctly regardless of the boost level.
- Sealed Throttle Shafts: Standard carburetors have small gaps around the throttle shafts that can leak air under boost. Specialized seals are installed to keep the pressurized air inside the intake tract.
- Adjustable Power Valves: Because boost changes the air-fuel ratio requirements drastically, standard vacuum-actuated power valves often fail. Boost-referenced power valves or high-flow replacements are used to ensure the engine doesn't go lean under load.
- Float and Needle Upgrades: Higher fuel pressure is required to overcome the boost pressure, which can overwhelm standard needles and seats. These are upgraded to handle higher flow rates and pressures.
Why Choose Blow Through Over EFI?
While Electronic Fuel Injection (EFI) is the industry standard for modern performance, many hot-rodders still prefer the blow through carburetor approach. The decision often comes down to budget, mechanical preference, and the intended use of the vehicle.
| Feature | Blow Through Carburetor | Electronic Fuel Injection |
|---|---|---|
| Cost | Significantly Lower | High |
| Complexity | Mechanical/Simple | Electronic/Complex |
| Tuning | Hand Tools/Jets | Laptop/Software |
| Reliability | Good (if set up right) | Excellent |
The primary benefit of the blow through carburetor is the cost-to-performance ratio. You can often build a competitive boosted carbureted setup for a fraction of the cost of a high-end EFI system, provided you have the patience for trial-and-error tuning with jets and air bleeds.
Critical Setup Steps for Performance
Setting up a blow through carburetor is not a "bolt-on and go" process. It requires careful attention to detail, especially regarding the fuel system. Because you are pushing air into the carburetor, your fuel pump must be able to push back with enough force to keep the bowls full.
Follow these essential steps for a successful installation:
- Regulate Fuel Pressure: Ensure you have a boost-referenced fuel pressure regulator. It must increase fuel pressure on a 1:1 basis with boost pressure. If you are running 10 psi of boost, your fuel pressure needs to be at least 10 psi over your base fuel pressure.
- Monitor Air-Fuel Ratios (AFR): A wideband oxygen sensor is non-negotiable. You cannot tune a blow through carburetor by "ear" or plug color alone. You need precise data to avoid engine-destroying lean conditions.

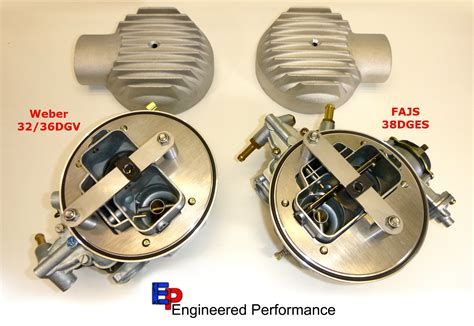

- Check the Carburetor Hat: The "hat" or intake bonnet that sits over the carburetor must provide even air distribution. Poorly designed hats can cause uneven fueling across the cylinders, leading to detonation in specific cylinders while others run rich.
- Manage Heat: Forced induction generates significant heat. Ensure your intake manifold and fuel lines are protected or shielded to prevent heat soak, which can lead to vapor lock in the fuel bowls.
⚠️ Note: Always verify that your needle and seat assemblies are specifically rated for "blow through" applications, as standard viton-tipped needles may deform or stick under high fuel pressure requirements.
Tuning for Boost
Tuning a blow through carburetor is an art form. Unlike EFI, where you adjust a map on a screen, here you are physically changing brass components. Start by establishing a baseline tune that is safe and slightly rich. As you increase boost levels, you will likely need to adjust the primary and secondary jets. It is generally better to start "fat" (rich) and work your way leaner while monitoring your AFR logs carefully.
When you encounter a "lean spike"—a common issue when the turbo spools up—you may need to adjust the accelerator pump cam or nozzles. Since the engine is gulping air much faster under boost, the transition from idle to wide-open throttle requires a significant surge of fuel to prevent a stumble. Don't be afraid to experiment with different pump discharge nozzles to find the sweet spot for your specific intake runner length and turbo size.
⚠️ Note: If your engine backfires through the carburetor during the tuning process, immediately check the power valve diaphragm, as these can easily rupture under sudden pressure spikes.
Successfully integrating a blow through carburetor into your build offers a rewarding bridge between classic mechanical tuning and modern power levels. By paying close attention to fuel pressure referencing, intake bonnet design, and precise air-fuel ratio monitoring, you can create a reliable and extremely powerful engine package. While it demands more hands-on effort and a deeper understanding of fluid dynamics compared to electronic systems, the satisfaction of perfecting a carburetor-based boosted setup remains a hallmark of true mechanical craftsmanship. As you refine your jets, air bleeds, and power valves, remember that consistency and data-driven adjustments are the secrets to long-term performance and engine longevity in any forced-induction environment.
