When it comes to the reliability of electronic systems, whether in automotive, marine, or industrial applications, the importance of Battery And Cable Connectors cannot be overstated. These components serve as the critical interface between your power source and the machinery it drives. A weak or improper connection can lead to significant voltage drops, system failures, or even dangerous heat buildup. Understanding the nuances of these connectors—from materials and types to proper installation techniques—is essential for anyone looking to maintain a high-performance electrical system.
Understanding the Role of Battery And Cable Connectors

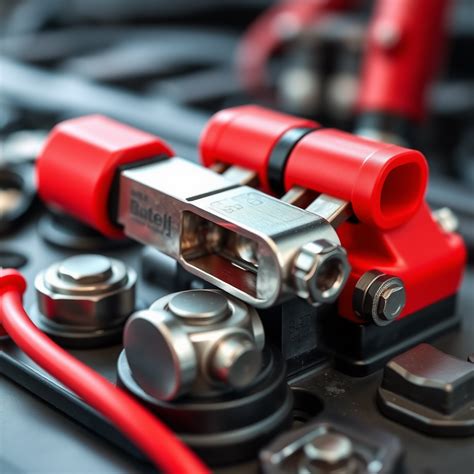

At their core, Battery And Cable Connectors are designed to bridge the gap between heavy-duty power cables and battery terminals. They act as the “gatekeepers” of current, ensuring that electricity flows efficiently without resistance. Over time, connectors can experience oxidation, corrosion, or mechanical wear, which eventually compromises the system’s integrity. High-quality connectors are usually crafted from materials like tinned copper or brass, providing excellent conductivity while resisting the harsh environmental factors that lead to degradation.
Common Types of Connectors Used in Modern Systems
Selecting the right connector depends heavily on your specific application, the gauge of the wire, and the environmental conditions. Below is a breakdown of the most common types you will encounter:

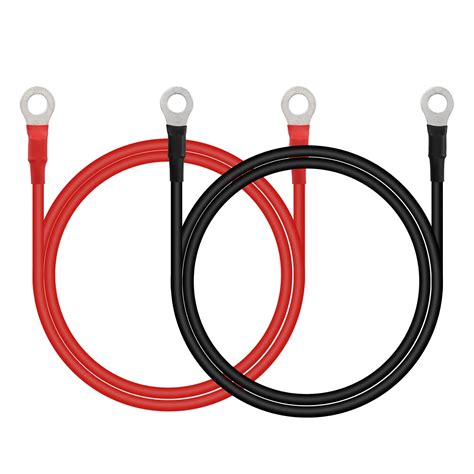

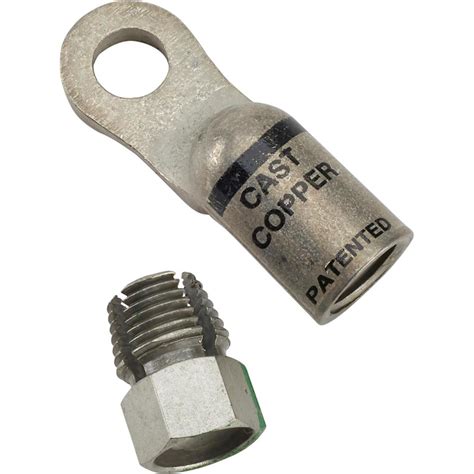

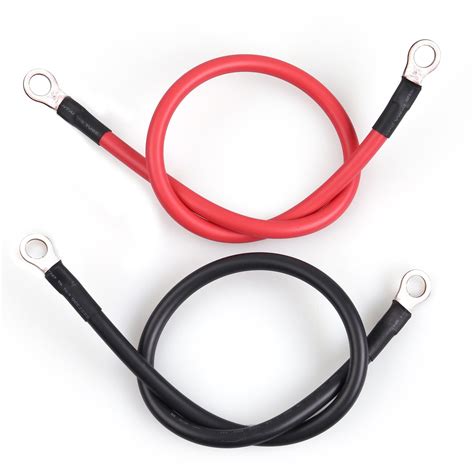

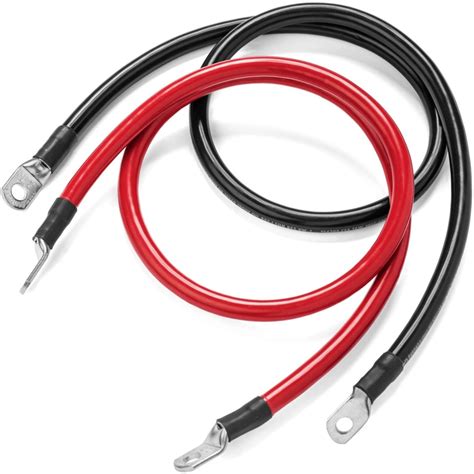

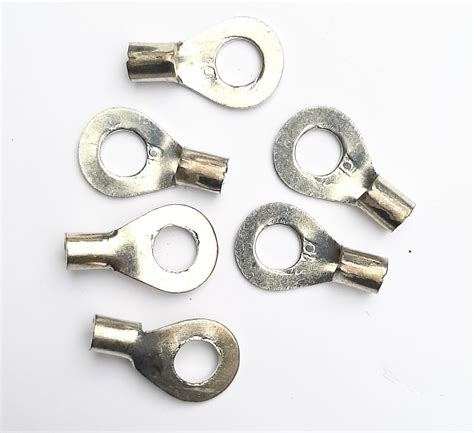

- Ring Terminals: These are the gold standard for secure, bolt-on connections. They provide a large surface area for current to flow, making them ideal for high-amperage applications.

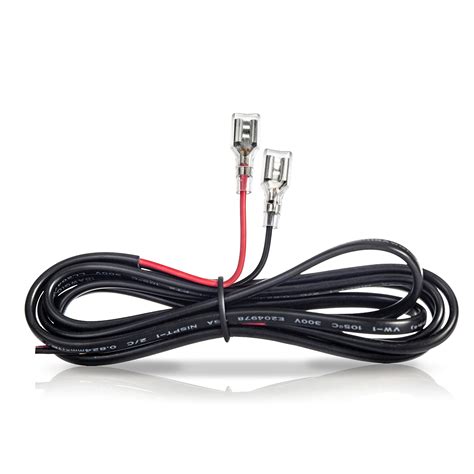

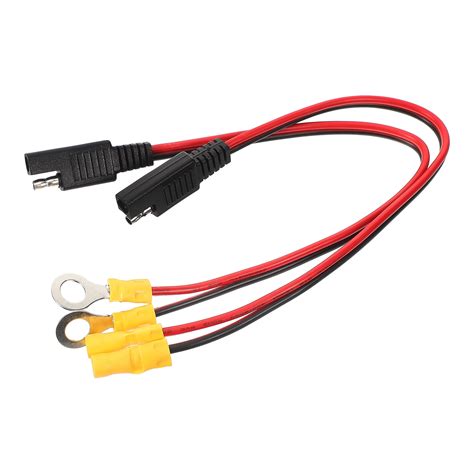

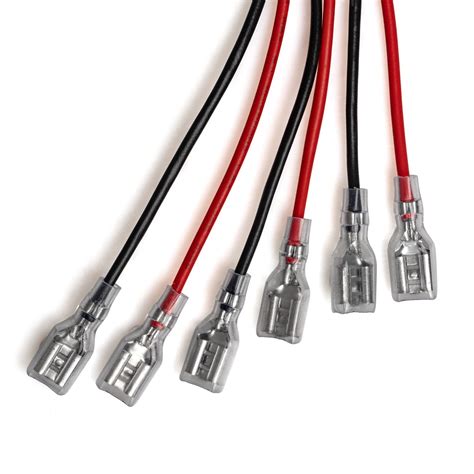

- Quick Disconnect Terminals: Often found in automotive or portable power setups, these allow for rapid connection and removal without specialized tools.

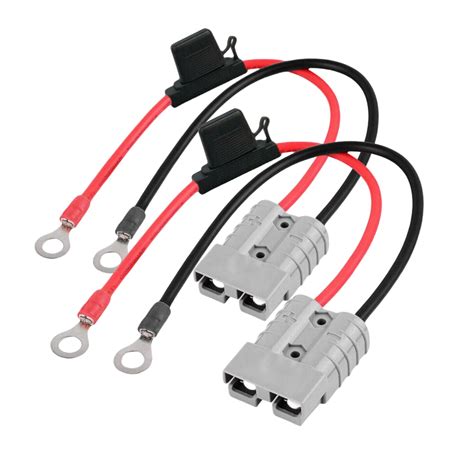

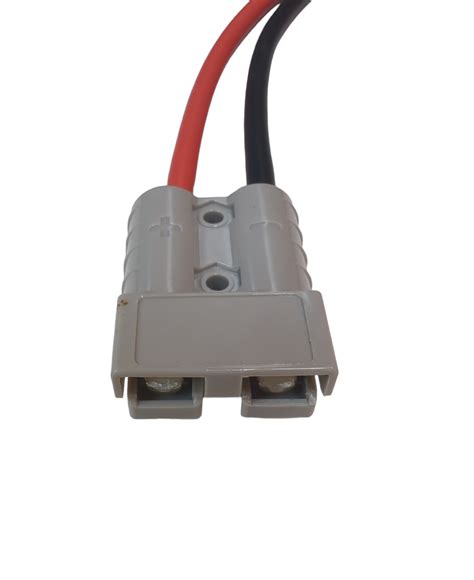

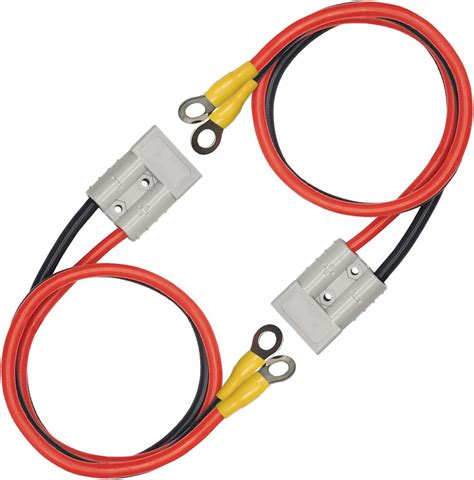

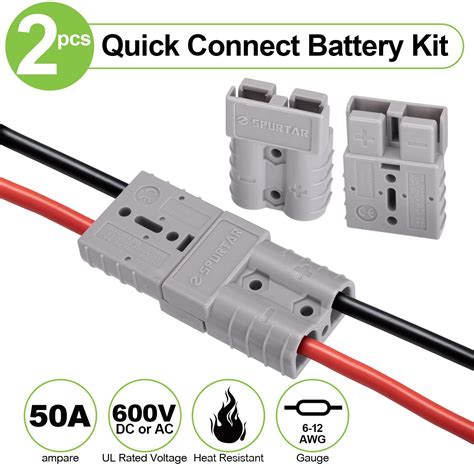

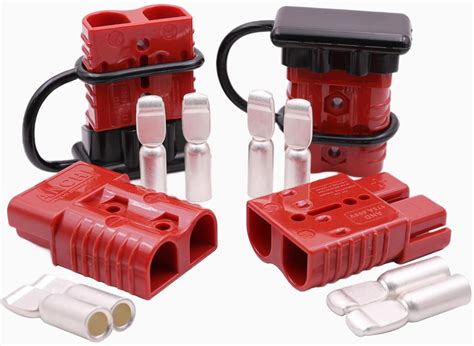

- Anderson Powerpole Connectors: Favored for their genderless design, these are common in industrial equipment and heavy-duty battery setups, offering high durability and safety.
- Marine-Grade Lugs: Built to withstand moisture and salt, these are often heat-shrinkable to create a watertight seal, preventing corrosion from creeping into the wire strands.
Comparison Table: Connector Materials and Applications
| Material | Best Use Case | Key Advantage |
|---|---|---|
| Tinned Copper | Marine and high-moisture environments | Extreme corrosion resistance |
| Bare Copper | Indoor, climate-controlled environments | Superior electrical conductivity |

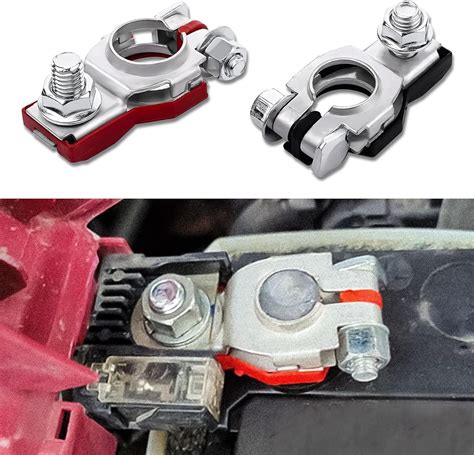

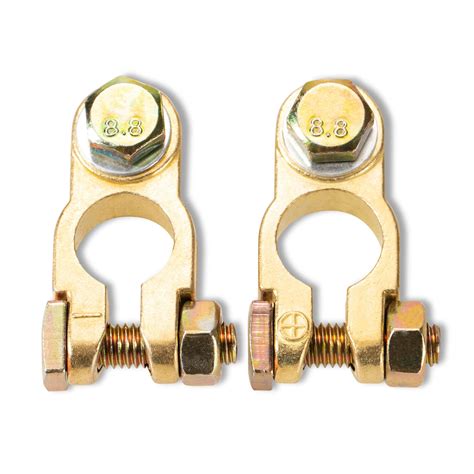

| Brass | Automotive battery terminals | High mechanical strength and durability |
Best Practices for Installation and Maintenance
The installation of Battery And Cable Connectors is just as important as the quality of the component itself. A poor crimp or a loose bolt will generate heat, eventually leading to a melted connector or a dead battery. To ensure a professional-grade setup, follow these steps:
- Strip the Wire Properly: Ensure you are using a sharp wire stripper to avoid cutting into the wire strands. A nicked conductor reduces the ampacity of the cable.
- Use the Right Crimp Tool: Never attempt to crush a lug with pliers. Use a heavy-duty hydraulic or mechanical crimping tool that matches the gauge of the cable and terminal.
- Seal the Connection: Whenever possible, use adhesive-lined heat shrink tubing. This protects the transition point between the lug and the wire from dirt, moisture, and vibration.
- Apply Conductive Grease: A thin layer of dielectric or conductive grease can help prevent oxidation over time, especially in exposed engine bays.
⚠️ Note: Always disconnect the negative terminal first when working on battery systems to prevent accidental short circuits during the installation process.
Troubleshooting Common Connector Issues
If you notice that your device is losing power or that the battery is failing to hold a charge despite being tested, the issue might be hidden at the connection point. Look for signs of “green crust” (corrosion), which acts as an insulator and impedes current. Additionally, check for signs of heat discoloration on the cable insulation near the Battery And Cable Connectors; this is a clear indicator of high resistance caused by a loose connection or a crimp that has failed.
Vibration is another major culprit, particularly in off-road or marine vehicles. Over time, movement can loosen fasteners. Regularly inspect all nuts, bolts, and crimp points to ensure they remain tight and free of physical damage. Replacing old or damaged hardware during your annual vehicle maintenance is a proactive way to avoid being stranded.
Selecting the Right Gauge for Your Needs
One of the biggest mistakes users make is ignoring wire gauge (AWG). If your cable is too thin for the current being drawn, the connectors will naturally run hot, even if they are high-quality. Always match your connector size to the wire gauge and ensure the total system current is within the rated safety limits of both the wire and the connector. Using oversized connectors for smaller wires is generally fine, but undersized connectors are a major fire hazard that must be avoided at all costs.
💡 Note: Always cross-reference the ampacity ratings of your cables with the terminal specifications provided by the manufacturer to ensure total system safety.
Investing time into understanding and correctly installing your power infrastructure pays off in the long run. By choosing high-quality materials, utilizing the proper tools for the job, and maintaining your connections through periodic inspections, you can ensure that your electrical systems remain safe and efficient. Proper care for your connections prevents the hidden failures that often stem from simple wear and tear, providing peace of mind whether you are managing a complex industrial setup or a simple home power project. Ultimately, the durability of your electrical system is only as strong as its weakest connection, making the selection of high-quality components a foundational step in any successful project.
