Understanding the fundamental arrangement of atoms within a molecule is a cornerstone of organic chemistry, and the Acetylene Lewis Structure serves as a perfect case study for mastering chemical bonding principles. Acetylene, known scientifically as ethyne (C₂H₂), is a simple yet fascinating hydrocarbon. Its unique structural properties, characterized by a carbon-carbon triple bond, make it a high-energy molecule widely used in industrial welding and metal cutting. To visualize how these atoms connect, we rely on the Lewis dot structure, a diagrammatic representation that maps out valence electrons and chemical bonds, helping us predict the molecular geometry and reactivity of this essential compound.
Understanding the Basics of Acetylene (C₂H₂)
Before diving into the construction of the Acetylene Lewis Structure, it is helpful to understand the components involved. The formula C₂H₂ tells us that the molecule consists of two carbon atoms and two hydrogen atoms. In organic chemistry, carbon generally forms four bonds to achieve a stable octet, while hydrogen requires only two electrons to reach the stable configuration of helium.
- Carbon (C): Has 4 valence electrons.
- Hydrogen (H): Has 1 valence electron.
- Total valence electrons: (2 x 4) + (2 x 1) = 10 valence electrons.
Because carbon has a high valency compared to hydrogen, the carbon atoms form the backbone of the molecule. The goal of the Lewis structure is to ensure that both carbon atoms satisfy the octet rule (having 8 electrons) and both hydrogen atoms satisfy the duplet rule (having 2 electrons).

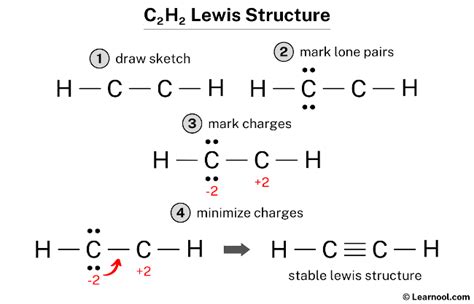

Step-by-Step Guide to Drawing the Acetylene Lewis Structure
Constructing the Acetylene Lewis Structure requires a systematic approach to distribute the 10 available valence electrons. By following these steps, you can accurately map the bonds within the molecule:
- Calculate Total Valence Electrons: As noted above, we have 10 electrons to distribute.
- Arrange the Atoms: Place the carbon atoms in the center and attach one hydrogen to each carbon (H-C-C-H).
- Form Initial Bonds: Draw a single bond between each atom. Each single bond represents 2 electrons. By connecting H-C, C-C, and C-H, we have used 3 bonds (6 electrons).
- Distribute Remaining Electrons: We have 4 electrons remaining (10 - 6 = 4). These must be used to satisfy the octets of the carbon atoms.
- Form Multiple Bonds: Since the carbons currently only have 2 electrons each from their single bonds, they need 6 more electrons to reach an octet. We move the remaining electrons to form a triple bond between the two carbon atoms.
⚠️ Note: When drawing the final structure, always double-check the total electron count to ensure you have not exceeded the 10 electrons available for the molecule.
Molecular Geometry and Bonding Characteristics
The Acetylene Lewis Structure reveals that the carbon-carbon triple bond is exceptionally strong and short. Because the carbons are connected to only two other atoms (one hydrogen and one carbon), the molecule adopts a linear geometry. The bond angle between the atoms is 180 degrees, which minimizes electron repulsion and creates a stable, straight-line configuration.
The following table summarizes the bonding details for the C₂H₂ molecule:
| Feature | Description |
|---|---|
| Molecular Formula | C₂H₂ |
| Total Valence Electrons | 10 |
| Bond Type | Triple Bond (C≡C) |
| Molecular Geometry | Linear |
| Bond Angle | 180° |
| Hybridization | sp Hybridization |
Why the Triple Bond Matters
The existence of the triple bond in the Acetylene Lewis Structure is the reason for the molecule's distinct chemical behavior. A triple bond consists of one sigma bond and two pi bonds. The high electron density associated with these pi bonds makes acetylene highly reactive. It is this reactivity that makes it an excellent fuel source; when reacted with oxygen, the combustion of acetylene releases a significant amount of heat, resulting in a flame temperature capable of melting most metals.
Furthermore, the sp hybridization of the carbon atoms in acetylene is a direct consequence of its linear structure. This hybridization places the electrons in orbitals that are optimal for the formation of the triple bond, explaining why the molecule maintains such a rigid, linear shape even under varying conditions.
Common Challenges in Visualizing Lewis Structures
Students often find it difficult to transition from a 2D Acetylene Lewis Structure to the 3D reality of the molecule. It is important to remember that Lewis structures are essentially "maps" meant to help with electron accounting. While they don't always represent the physical spatial orientation perfectly, they are the essential first step for predicting VSEPR theory shapes and understanding polarity.
When practicing these diagrams, keep these tips in mind:
- Always prioritize placing the least electronegative atom in the center.
- Use dots to represent lone pairs and lines for shared bonding pairs.
- Verify every atom satisfies its respective shell requirement (duplet for hydrogen, octet for carbon).
💡 Note: Remember that in organic chemistry, carbon is almost always tetravalent; if your structure shows carbon with more or less than four bonds (or corresponding partial charges), re-evaluate your electron distribution.
Final Thoughts on Molecular Architecture
Mastering the Acetylene Lewis Structure provides more than just a passing grade in chemistry; it provides a foundational understanding of how atoms interact to store energy and create structure. By breaking down the molecule into its valence electron components and analyzing the resulting bonds, we gain insight into why acetylene behaves as a high-energy gas. This method of structural analysis remains the gold standard for scientists and students alike when exploring the vast world of organic compounds. Whether you are studying for an exam or simply exploring the mechanics of hydrocarbons, the ability to draw and interpret these diagrams is an invaluable skill that clarifies the hidden architecture of the chemical world around us.
