Have you ever walked into a long hallway or a large room and wished you could turn the lights on at one end and off at the other without walking back across the dark space? This is exactly where a 2 way light switch setup becomes an essential component of modern home electrical design. By allowing you to control a single light fixture from two different locations, this configuration provides both convenience and safety. Whether you are navigating a staircase at night or managing lighting in a large basement, understanding how these switches work and how to install them can significantly improve your home’s functionality.
Understanding the Mechanics of a 2 Way Light Switch
At its core, a 2 way light switch system uses two three-way switches wired together to create an electrical path that can be interrupted or completed from either location. Unlike a standard single-pole switch that simply breaks one wire, a three-way switch has three terminal screws (not including the ground). These terminals work together to redirect electricity, allowing the circuit to remain active regardless of the position of either switch.
To identify these switches, look for the following characteristics:
- Common Terminal: Usually colored black or darker than the other screws. This is where the power enters or the light fixture connects.
- Traveler Terminals: Typically brass-colored. These are where the “traveler” wires connect, linking the two switches together.
- Ground Screw: Almost always green, used for safety to prevent electrical shocks.
Essential Tools for Installation
Before you begin any electrical work, safety is the top priority. You must ensure you have the right tools to perform the job safely and efficiently. Always work with the power turned off at the main breaker panel. Below is a list of the necessary equipment:
| Tool | Purpose |
|---|---|
| Voltage Tester | Ensures the power is completely off before touching wires. |
| Screwdriver Set | Used for removing faceplates and tightening terminal screws. |
| Wire Strippers | Essential for exposing clean copper wire for secure connections. |
| Needle-nose Pliers | Helpful for bending wire loops to fit under screw terminals. |
⚠️ Note: Always confirm the circuit is dead using a non-contact voltage tester even after flipping the breaker. Never assume the power is off based on the switch position alone.
Step-by-Step Wiring Guide

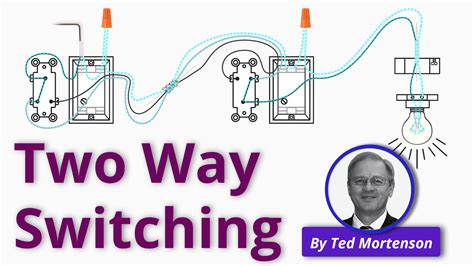

Wiring a 2 way light switch can seem daunting, but it follows a logical path if you focus on the terminal types. The secret lies in the traveler wires. The power source goes into the common terminal of the first switch, and the light fixture connects to the common terminal of the second switch. The two traveler terminals on both switches are then connected to each other via a pair of traveler wires.
Follow these steps for a successful installation:
- Identify the Wires: You will typically see a black (hot) wire, a white (neutral) wire, a ground wire, and two traveler wires (often red and black).
- Connect the Commons: Attach the power feed to the dark-colored terminal on the first switch. Attach the wire leading to the light fixture to the dark-colored terminal on the second switch.
- Connect the Travelers: Attach the two traveler wires to the brass terminals on both switches. The orientation of these two wires does not matter, as they perform the same function.
- Secure the Grounds: Always connect the bare copper or green ground wires to the green terminal on the switch and ensure the box is also grounded.
💡 Note: If your house was wired before the mid-1970s, you might encounter different wire colors. Always map your wires before disconnecting them if you are replacing existing switches.
Common Troubleshooting Tips
If the lights are not working as expected after your installation, the most common culprit is a mix-up of the common and traveler wires. If the light only works when one switch is in a specific position, you have likely swapped a traveler with a common wire. Carefully unscrew the connections and re-verify which wire was connected to the dark terminal. Sometimes, it is helpful to label the wires with electrical tape before removing the old switch to avoid confusion.
Benefits of Upgrading Your Switches
Upgrading to a 2 way light switch configuration is more than just a convenience; it adds value to your property. Smart 2-way switches are now available, which allow you to control lighting from your smartphone or via voice commands, adding an extra layer of automation to your home. These modern versions often provide dimming capabilities, which can significantly reduce your energy consumption over time, leading to lower utility bills and a smaller carbon footprint.
Safety Considerations for DIY Electrical Work
While installing these switches is a common DIY project, it is vital to respect the complexity of electrical systems. If you feel uncomfortable handling wiring, or if you encounter unexpected configurations—such as complex circuits involving multiple lights or complicated daisy-chained wiring—do not hesitate to call a licensed electrician. Electrical fires and accidents are serious risks, and professional expertise provides peace of mind that your home is safe and compliant with local building codes.
Final Thoughts
Mastering the installation of a 2 way light switch is a rewarding project that transforms how you interact with your home. By allowing light control from two distinct points, you eliminate unnecessary trips across dark rooms and improve the overall efficiency of your lighting system. Remember that the key to a successful setup lies in correctly identifying the common terminals and ensuring that all traveler wires are securely fastened. Whether you are replacing old, worn-out hardware or upgrading to modern smart switches, the effort you put into this electrical task pays off with increased comfort and convenience for years to come. Always prioritize safety, take your time during the installation, and enjoy the seamless control of your home lighting.
