In the world of professional stage design, event production, and architectural installations, structural integrity is non-negotiable. Whether you are setting up a concert lighting rig, a trade show booth, or a complex permanent display, the backbone of your project often relies on high-quality aluminum truss systems. At the heart of these modular systems lies the 12X12 Truss Corner Block, a critical component that determines the stability, geometry, and safety of your entire construction. Understanding how to utilize these components effectively is essential for any rigger, technician, or event planner aiming for professional-grade results.
Understanding the Anatomy of a 12X12 Truss Corner Block

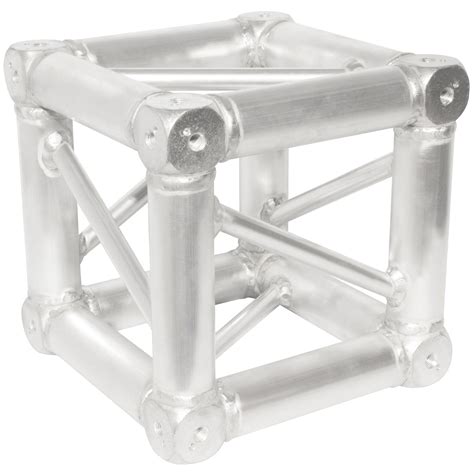

The 12X12 Truss Corner Block serves as the central junction point where multiple lengths of truss meet to create corners, cubes, or complex shapes. Unlike a standard bolt-on corner, a block system is designed for high-load capacity and allows for multi-directional attachments. Typically fabricated from heavy-duty aluminum alloy, these blocks are engineered to maintain a precise 90-degree angle while distributing the mechanical stress evenly across the truss segments.
These components are specifically manufactured to integrate with standard 12-inch box truss systems. Their modular design typically features:
- Standardized Connector Points: Precisely drilled holes that align with standard spigots or bolt patterns.
- Heavy-Duty Aluminum Construction: Designed for high durability and rust resistance in both indoor and outdoor environments.
- Integrated Receiver Plates: These allow for the attachment of side-loading or top-loading fixtures, providing versatility for lighting and sound gear.
Why the Corner Block is Vital for Structural Integrity
When you are building a ground support structure or a flown lighting grid, the corners are the most vulnerable points of the assembly. A 12X12 Truss Corner Block provides the necessary reinforcement that simple hinges or generic junctions cannot provide. Because these blocks are solid, they prevent the twisting (or "racking") that can occur when heavy lighting rigs are mounted on a corner.
By using a dedicated block, you ensure that the entire length of your truss remains perfectly level. If the corner joint is weak, the entire structure may lean, putting dangerous levels of torque on the truss welds. Investing in high-quality corner blocks is essentially an investment in the safety of your performers, crew, and audience.
Specifications and Loading Considerations
Before beginning your build, it is vital to understand the load-bearing limitations of your hardware. While the 12X12 Truss Corner Block is robust, it must be used in accordance with engineering standards. The following table provides a general overview of standard specifications encountered in the industry:
| Feature | Specification |
|---|---|
| Material | 6061-T6 Aluminum Alloy |
| Standard Size | 12" x 12" x 12" |
| Connection Type | Bolt-on or Spigot/Pin System |
| Finish | Natural Aluminum or Powder Coated |
| Load Rating | Dependent on Truss Series (Verify with manufacturer data) |
⚠️ Note: Always check the specific load-bearing certifications provided for your individual unit. Never exceed the maximum weight capacity of the truss segments attached to the corner block.
Installation Best Practices
Proper installation of your 12X12 Truss Corner Block requires attention to detail. A sloppy connection can lead to structural failure over time due to vibration or weight shift. Follow these steps to ensure a rock-solid build:
- Inspection: Before assembly, inspect the block for any hairline cracks, dents, or signs of metal fatigue. Check that all bolt holes are free of debris.
- Alignment: Ensure the truss segments are properly leveled before tightening the connections. Use a level tool to verify that your corner block is sitting perfectly parallel to the ground or grid.
- Torqueing: If you are using a bolt-on system, ensure all hardware is tightened to the recommended torque specifications. Avoid over-tightening, which can strip the threads of the aluminum block.
- Security: Always use safety pins on spigot connectors to prevent accidental loosening during operation.
💡 Note: When using a spigot-style 12X12 Truss Corner Block, always ensure that the safety R-clips are fully seated. Vibration from sound systems can cause pins to migrate if they are not locked properly.
Applications Beyond Standard Lighting
While most people associate the 12X12 Truss Corner Block with lighting grids, their utility extends much further. Event planners often utilize these blocks to create:
- LED Screen Support: Building a cube or a large rectangular perimeter for mounting heavy LED video panels.
- Architectural Displays: Creating custom-shaped entryways, goal posts, or archways for trade show booths.
- Stage Scenery: Providing the rigid framework needed to hang decorative backdrops and scenic elements securely.
The versatility of these blocks means you can reconfigure your setup for various venues without needing to purchase an entirely new inventory. As long as you maintain your corner blocks and keep them free of corrosion, they will serve as the reliable foundation for hundreds of successful events.
Maintenance and Long-Term Care
To maximize the lifespan of your 12X12 Truss Corner Block, keep a strict maintenance log. After every tour or event, wipe down the aluminum to remove dust, stage haze fluid, or adhesive residues. If you are working in coastal or humid environments, consider using a non-corrosive protectant spray to keep the aluminum in pristine condition. Always store your blocks in protective cases to prevent damage to the connector faces, as any indentation can misalign the truss and cause assembly issues in the future.
Choosing the right corner block is a balance between understanding your structural requirements and ensuring you have the right components to facilitate a safe, efficient build. Whether you are a seasoned lighting technician or a venue manager, recognizing the importance of the 12X12 Truss Corner Block allows you to execute complex designs with total confidence. By adhering to standardized assembly protocols, respecting weight limitations, and prioritizing regular maintenance, you ensure that your event infrastructure remains safe and effective for years to come. Remember that a structure is only as strong as its connections, and selecting professional-grade hardware for your corners is the most effective way to uphold that standard of quality in every project you undertake.
