Understanding the fundamental relationship between electrical components is essential for anyone delving into the world of electronics or physics. When we examine how energy moves through a circuit, we often encounter the core principles of Ohm’s Law. At the heart of this study, we find that Current And Resistance Have A: strictly inverse relationship. This means that if you maintain a constant voltage, an increase in resistance will inevitably lead to a decrease in the flow of electrical current. Grasping this interaction is the key to designing efficient circuits, troubleshooting electrical failures, and mastering the basics of hardware engineering.
The Core Concept: Ohm’s Law Defined

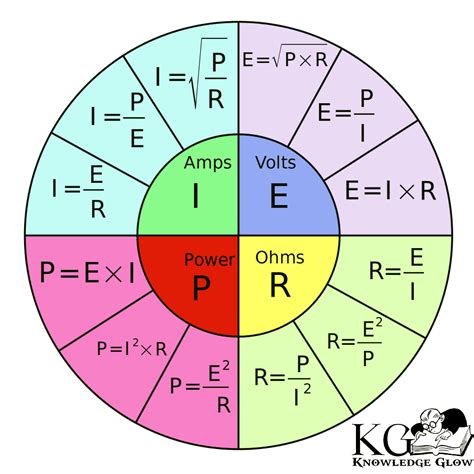

To understand why current and resistance behave the way they do, we must look at the mathematical foundation provided by Georg Simon Ohm. Ohm’s Law states that the current flowing through a conductor between two points is directly proportional to the voltage across the two points and inversely proportional to the resistance between them. The formula is expressed as I = V / R, where I is current, V is voltage, and R is resistance.
When you consider the phrase Current And Resistance Have A: fixed inverse correlation, you realize that resistance acts as a gatekeeper. If the path becomes harder to traverse—meaning the resistance increases—the "flow" or current must diminish, assuming the pressure (voltage) stays the same. Think of it like water flowing through a pipe: if you narrow the pipe (increasing resistance), less water can pass through in the same amount of time.
Key Factors Influencing Electrical Resistance
Resistance is not a static value for every material; it depends on several physical properties. Understanding these can help you better manage how current behaves in your specific projects:
- Material Composition: Metals like copper and silver have low resistance, while rubber and glass have extremely high resistance.
- Length of the Conductor: A longer wire has more internal resistance than a shorter wire of the same material.
- Cross-Sectional Area: Thinner wires have higher resistance compared to thicker wires, which allow for easier electron flow.
- Temperature: For most metallic conductors, increasing the temperature increases the resistance, as atoms vibrate more and impede the movement of electrons.
Visualizing the Relationship
To better grasp how these values shift in a real-world setting, it is helpful to view them side-by-side. The table below illustrates what happens to the current (I) when voltage (V) remains constant at 12 Volts, but the resistance ® changes.
| Resistance (Ohms) | Voltage (Volts) | Resulting Current (Amps) |
|---|---|---|
| 2 Ω | 12 V | 6 A |
| 4 Ω | 12 V | 3 A |
| 6 Ω | 12 V | 2 A |
| 12 Ω | 12 V | 1 A |
⚠️ Note: When calculating these values, ensure that all units are in standard SI format—Amperes for current, Volts for voltage, and Ohms for resistance—to avoid significant calculation errors.
Practical Applications in Circuit Design
In real-world circuit design, engineers manipulate this relationship constantly. For instance, if you are powering an LED, you must include a resistor. Without it, the resistance of the LED itself might be too low, allowing too much current to flow and causing the component to burn out. By choosing the right resistor, you effectively limit the current to a safe operating level for the device.
Another example is found in heating elements, such as those in a toaster or an electric heater. Here, the goal is actually to have high resistance. By creating a path with high resistance, the electrical energy is converted into heat due to the work the electrons must do to push through the material. In this case, Current And Resistance Have A: distinct function where the impedance of current flow is the intentional goal to generate thermal energy.
Managing Resistance in Complex Circuits
When dealing with multiple resistors in a series or parallel configuration, the total resistance changes, which in turn alters the total current draw from your power source:
- Series Circuits: The total resistance is the sum of all individual resistors (R1 + R2 + R3). As you add more resistors in a series, the total resistance increases, causing the total current to decrease.
- Parallel Circuits: Adding more paths for the current to flow actually decreases the total resistance of the circuit. Because there are more paths available, the total current drawn from the supply increases.
Understanding these configurations allows you to control the flow of electricity precisely. Whether you are building a simple hobbyist project or a complex industrial control system, the logic remains identical. The ability to troubleshoot often comes down to identifying an unexpected change in resistance, which will manifest as a change in current—either too low (a broken connection or high-resistance fault) or too high (a short circuit).
Safety Considerations and Best Practices
Working with electricity always carries risks. Always ensure your components are rated for the amount of current expected to flow through them. Using a resistor that is too small for the power dissipation required can lead to component failure, smoke, or fire. Always consult datasheets for your components and ensure you understand the power formula (P = I²R) as well as Ohm’s Law.
💡 Note: Always disconnect your power source before measuring resistance with a multimeter. Measuring resistance in a live circuit can damage your test equipment and provide inaccurate readings.
Final Thoughts
Mastering the dynamics of electrical circuits begins with a firm grasp of how current and resistance interact. By recognizing that these two properties exist in an inverse relationship when voltage remains stable, you gain the ability to predict and manipulate the behavior of electricity in almost any scenario. From protecting sensitive electronic components with resistors to generating heat through intentional impedance, this relationship is the backbone of modern electrical engineering. Whether you are a student, a professional, or a DIY enthusiast, keeping these foundational principles at the forefront of your work will ensure your circuits are not only functional but also safe and efficient. Always remember that while complex calculations can be daunting, the fundamental interaction between current and resistance is a constant and reliable law that you can use to your advantage in every electronic endeavor you undertake.
